PVC dipping flexible copper busbar-RHI Dip Molding,RHI Battery Terminal Connector

PVC Dipping Flexible Copper Busbar are developed from high conductivity based electrolytic grade copper sheets/foils. These are made using a press welding procedure where individual copper strips are fused through applying direct current as well as pressure without the need of foreign material. PVC Dipping covers are perfect insulation and flame retardancy UL94v-0 standard, the covers can hold 10KV and allows large current to pass.

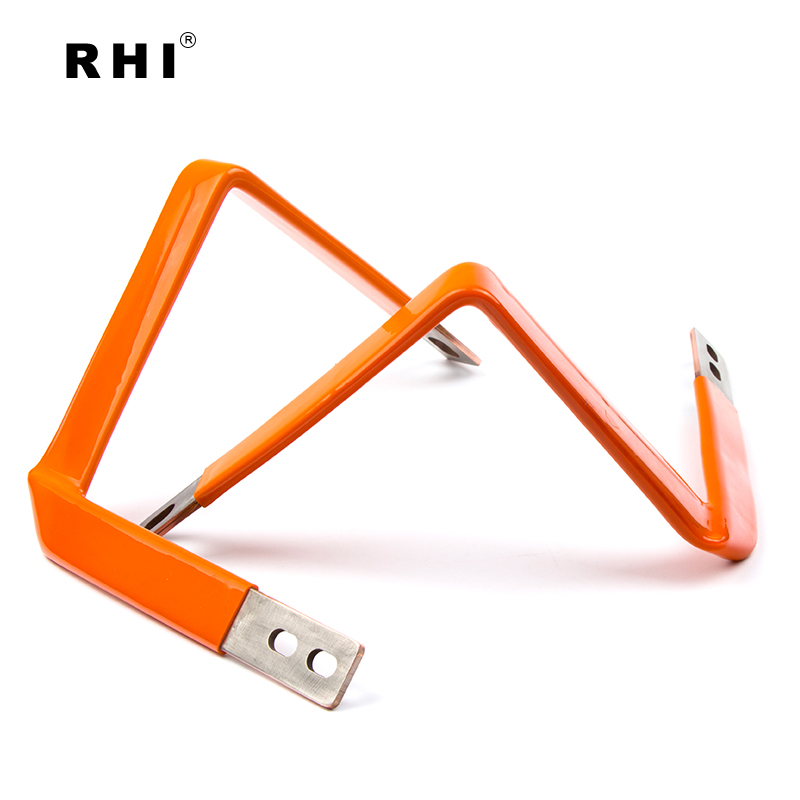

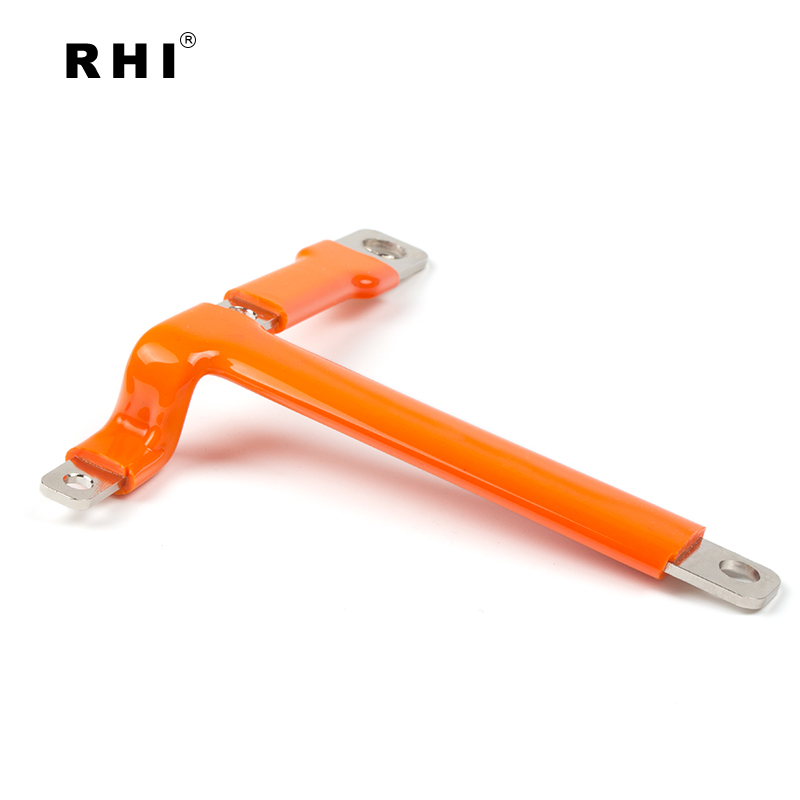

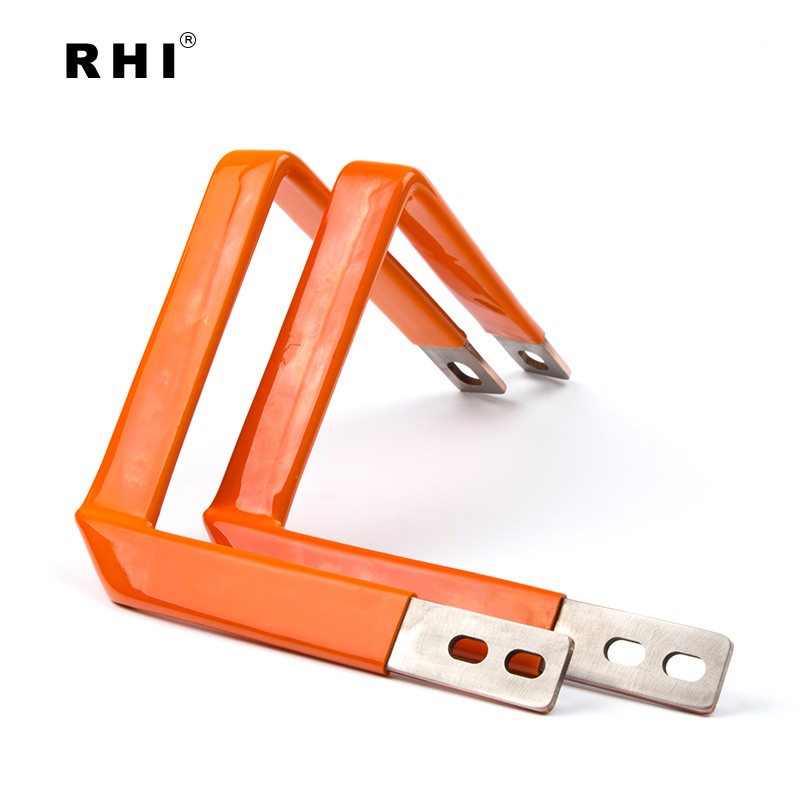

Photo Show:

rhi plastic caps and copper busbar

Details of Flexible Laminated Copper Busbars

Material	T2 99.95% copper foils/sheet
Copper Foils Thickness	0.1mm, 0.2mm, 0.3mm, 0.5mm, 1.0mm
Surface Finishes	Black Paint Electro brush Silver Plating Tank Nickel or Tin Plating
Production Process	High Ampacity Flexible Connection Molecularly Fused Laminates Ends High DC Current Under Pressure Welding
Current	Typical: up to 2000 A Possible: Up to 5,000 A
Flex parts of length	Up to 6.6 ft.(2meters long)
Width	Up to 6.0 inch (152mm )
Max.Oeveall Thickness	1.25 inch (32mm)
Testing	Resistance, Temperature Rise, Conductivity
Sample	Free

Laminated Flexible Jumpers advantages:

1) Welding press many laminations improve electrical conductivity and add the transmission of current.

2) The feature of flexible enable us to be made busbars in various types.

3) Laminated copper shunts are flexible and easy to install.

4) Flexible laminate busbar is not easy to be broken after thousands times of bending.

All sizes can be customized. Just send us your drawings, such as PDF, JPEG, PNG,JPG etc.

We will quote for you in 1-2 working days !

Busbar Types :

Nickel Plated busbar	Bare Copper Busbar	Tinned Copper Busbar

Insulated Busbar with Sleeving	Solid Busbar with Dipping	Insulated Busbar with Coating

Technics Supports & Usage:

Techinics Abilities	Cutting, Punching, Twisting, Bending, Plating, Riveting,Dipping, Coating, Welding, Stamping,Tapping, Brazing, Drilling, Milling, Sawing etc
Plating Optional	Nickel Plating Silver Plating Tin Plating
Insulation Type	Epoxy Coated PVC Dipping Coated Heat Shrink Sleeves Adsorption
Hole Shape	Round Hole, Oval-shaped or Others
Edge Shape	Full Round Edge, Semicircle, Square Corner
Usage	1)New Energy Vehicles 2)Battery Packs; 3)Power Supply Room; 4)Power Distribution Equipments; 5)Switchboards; 6)Panel Boards; 7)Low and Medium Voltage Switchgear; 8) Electric Bus, High Speed Train, 9)High Current & Control Equipment; 10)Busway Systems etc.

Busbar Technics Shows:

Usage Show:

Our Advantages:

Strong Manufacturer: We have 6000 m2 standard workshop to assure the stability of busbars

Strong After-sale Service: Our after-service team has 30 staffs. With professional busbar knowledge and more than 5 years' exporting experience, our team help to solve any problem during cooperation.

Timely Delivery: As to the standard copper busbar, we promise normal order will be delivered within 7 days. Non-standard copper bus bar delivery time, we can discuss.

Quality Guarantee: Material is tested before production to guarantee it is 100% new raw material. All busbars are inspected before delivery.

Competitive Price: We are professional factory to supply most competitive price with high quality. For long cooperation and large quantity, we can discuss discount price.
